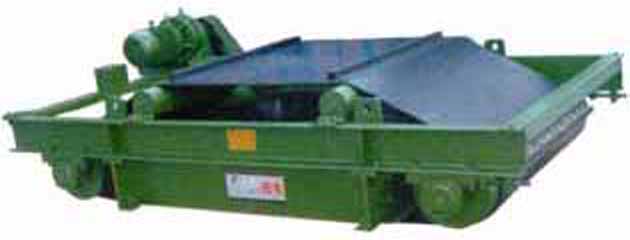

Feature of ZCY-C Permanent Magnetic Separators:

• Installed above the conveyor to remove scrap iron buried in thick material layer.
• Equipped with a tough,vulcanized rubber belt to remove scrap irons continuously.
• High power rare earth magnets used.
• Optional magnetic force at the suspension height rated:500Gs,700Gs,900Gs,1200Gs,1500Gs or above, which will be determined by the requirements of the client.
• Optional stainless steel cladding belt.
• Heavy-duty construction.
• Compact design.
• Electric motor with chain drive transmission.
• Departure of the belt can be rectified automatically.
• Low noise,Low maintenance,much power saved.
• Can be suspended either crossbelt(perpendicular to the product flow)or inline(paralled above the product flow.



Technical Parameters of ZCY-C Permanent Magnetic Separators

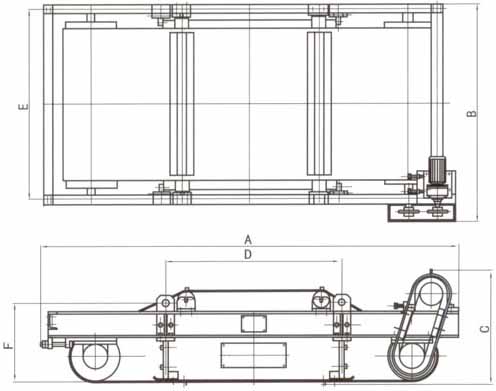

Type	Belt Width	Belt Velocity Adaptive	Suspension Height Rated(SHR) H	Magnetic Intensity at SHR	Catching Ability	Working Style	Driven Power	Outline Dimensions (mm)						Weight
	mm	m/s	mm	mT	kg		kw	A	B	C	D	E	F	kg
ZCY-C50	500	≤4.5	150	≥70	0.1~35	Contimuously	1.5	1970	903	722	620	647	451	680
ZCY-C65	650		200	≥70				2110	1053	722	770	797		830
ZCY-C80	800		250	≥70			2.2	2320	1253	722	970	997		1100
ZCY-C100	1000		300	≥70			3.0	2690	1453	803	1120	1430		1710
ZCY-C120	1200		350	≥70			4.0	2890	1713	868	1320	1430	516	2292
ZCY-C140	1400		400	≥70				3090	1913	868	1520	1630		3080
ZCY-C160	1600		450	≥70			5.5	3310	2143	955	1760	1852	590	4130
ZCY-C180	1800		500	≥72			7.5	3540	2420	1050	2045	2130		8100
ZCY-C200	2000		550	≥72			7.5	4510	2670	1020	2350	2400	780	11300



Type		Belt Width	Belt Velocity Adaptive	Suspension Height Rated(SHR) H	Magnetic Intensity at SHR	Driven Power	Outline Dimensions (mm)					Weight
		mm	m/s	mm	mT	kw	A	B	C	D	E	kg
ZCY-C65	T1	650	≤4.5	200	90	1.5	2110	1053	722	776	873	870
	T2				120	2.2	2110	1053	722	776	873	1350
	T3				150	2.2	2260	1053	722	870	873	1700
ZCY-C80	T1	680		250	90	2.2	2470	1253	722	970	1073	1500
	T2				120	2.2	2375	1253	722	970	1073	1700
	T3				150	3.0	2320	1253	722	966	1073	2000
ZCY-C100	T1	1000		300	90	3.0	2690	1450	803	1120	1273	1850
	T2				120	3.0	2690	1450	803	1120	1273	2100
	T3				150	4.0	2800	1450	828	1222	1273	3600
ZCY-C120	T1	1200		350	90	4.0	2890	1713	868	1320	1523	2400
	T2				120	4.0	2890	1713	868	1320	1523	3700
	T3				150	5.5	3040	1713	868	1320	1523	6000
ZCY-C140	T1	1400		400	90	4.0	3410	1913	924	1520	1723	3800
	T2				120	5.5	3410	1913	924	1520	1723	5800
	T3				150	5.0	3410	1913	924	1536	1723	7500
ZCY-C160	T1	1600		450	90	5.5	3610	2190	960	1720	1923	6150
	T2				120	5.5	3610	2190	960	1720	1923	7630
	T3				150	7.5	3810	2190	980	1820	1923	10360
ZCY-C180	T1	1800		500	90	7.5	4055	2570	960	1970	2173	7950
	T2				120	7.5	4055	2570	960	1970	2173	10590
	T3				150	11.0	4245	2570	1050	2070	2173	14600
ZCY-C200	T1	2000		550	90	7.5	4575	2570	960	2270	2430	11500
	T2				120	11.0	4810	2670	1020	2350	2430	14070
	T3				150	11.0	4810	2670	1070	2350	2430	19160
ZCY-C220	T1	2200		600	90	11.0	4810	2820	1020	2550	2670	13880
	T2				120	11.0	4810	2820	1070	2550	2670	18240
	T3				150	15.0	4810	2820	1070	2550	2670	25000
ZCY-C240	T1	2400		650	90	15.0	5210	3120	1070	3110	2850	18650
	T2				120	15.0	5210	3120	1170	3110	2850	23870
	T3				150	15.0	5210	3120	1182	3110	2850	29910

(For Reference Only)
